American 180 Lexan Drums
Lexan Drum Magazines are available in 165, 220, and 275 round configurations. These differ in their respective heights, and number of layers of ammunition they hold. The 165 Lexan drum is 1-1/4" tall and holds three layers of ammuniation. The 220 round Lexan drum is 1-3/8" tall and holds four layers of ammuniation. The 275 round Lexan drum is 1-9/16" tall and holds five layers of ammunition. In order to use the lexan drum you will need to install a Tall Front Sight (furnished free with your first lexan drum order). The original 177 round American 180 metal drum was 1-1/16" tall and held three layers of ammunition. The main advantage of the Lexan drum over the original metal American 180 drum, is the ability to see the number of rounds remaining in the drum.

Note: The recommended number of turns for the winder is - 2 1/2 turns initial plus 1 full turn per layer! Example: a 275 round drum takes 7 1/2 total turns.

American 180 - 165 Round Lexan Drum

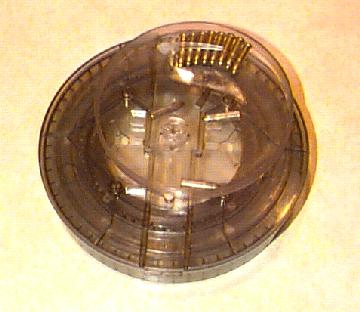

Lexan Drum The picture to the left is a Lexan 165 round drum shown with an optional loading tray attached.

Note: An Ungeared Winder is required to power the Lexan and or Metal Drums. Only one Winder is required and it can be used on multiple drums.

American 180 - 220 Round Lexan Drum
Lexan Drum 220 Rounds

Note: An Ungeared Winder is required to power the Lexan and or Metal Drums. Only one Winder is required and it can be used on multiple drums.

American 180 - 275 Round Lexan Drum
Lexan Drum 275 Rounds

Note: An Ungeared Winder is required to power the Lexan and or Metal Drums. Only one Winder is required and it can be used on multiple drums.

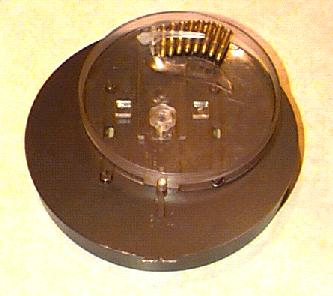

Original American 180 - 165 or 177 Round Metal Drum
The Original American 180 Metal Drums are in fairly short supply. E&L normally has some in stock but before ordering please call for price and availability. Loading tray optional ($35.00).

Note: An Ungeared Winder is required to power the Lexan and or Metal Drums. Only one Winder is required and it can be used on multiple drums.

$350.00
